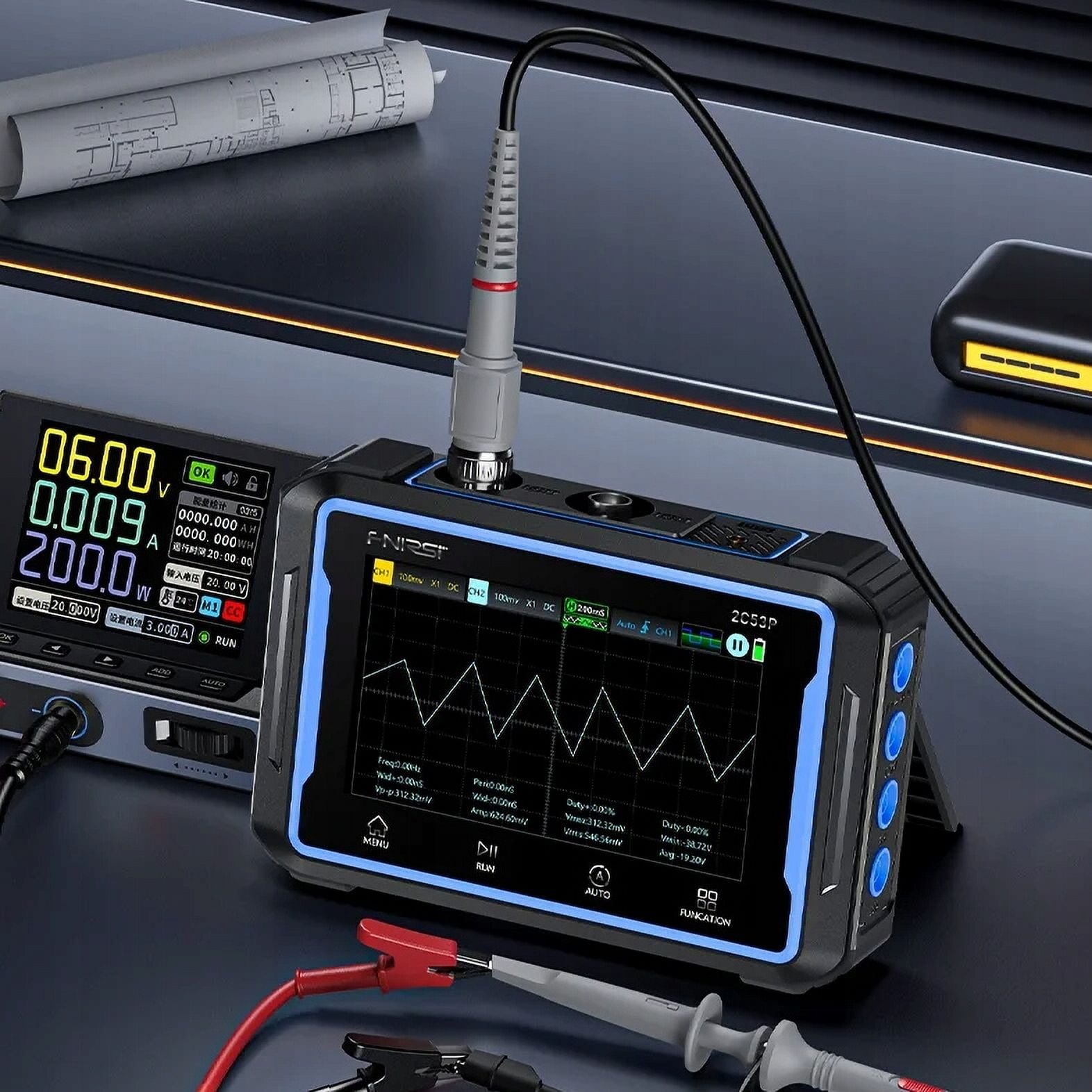

Digital multimeter signal meter oscilloscope 3in1 FNIRSI 2C53P

Digital multimeter signal meter oscilloscope 3in1 FNIRSI 2C53P

• Measuring Equipment 3in1 Oscilloscope FNIRSI 2C53P 2x P6100 Probe
  ✅ FNIRSI 2C53P combines three main functions: Digital Oscilloscope Electronic Component Tester Signal Generator
  ✅ It has the functions of measuring current, AC/DC voltage, capacitance, resistance, temperature, continuity test, diode parameters, etc.

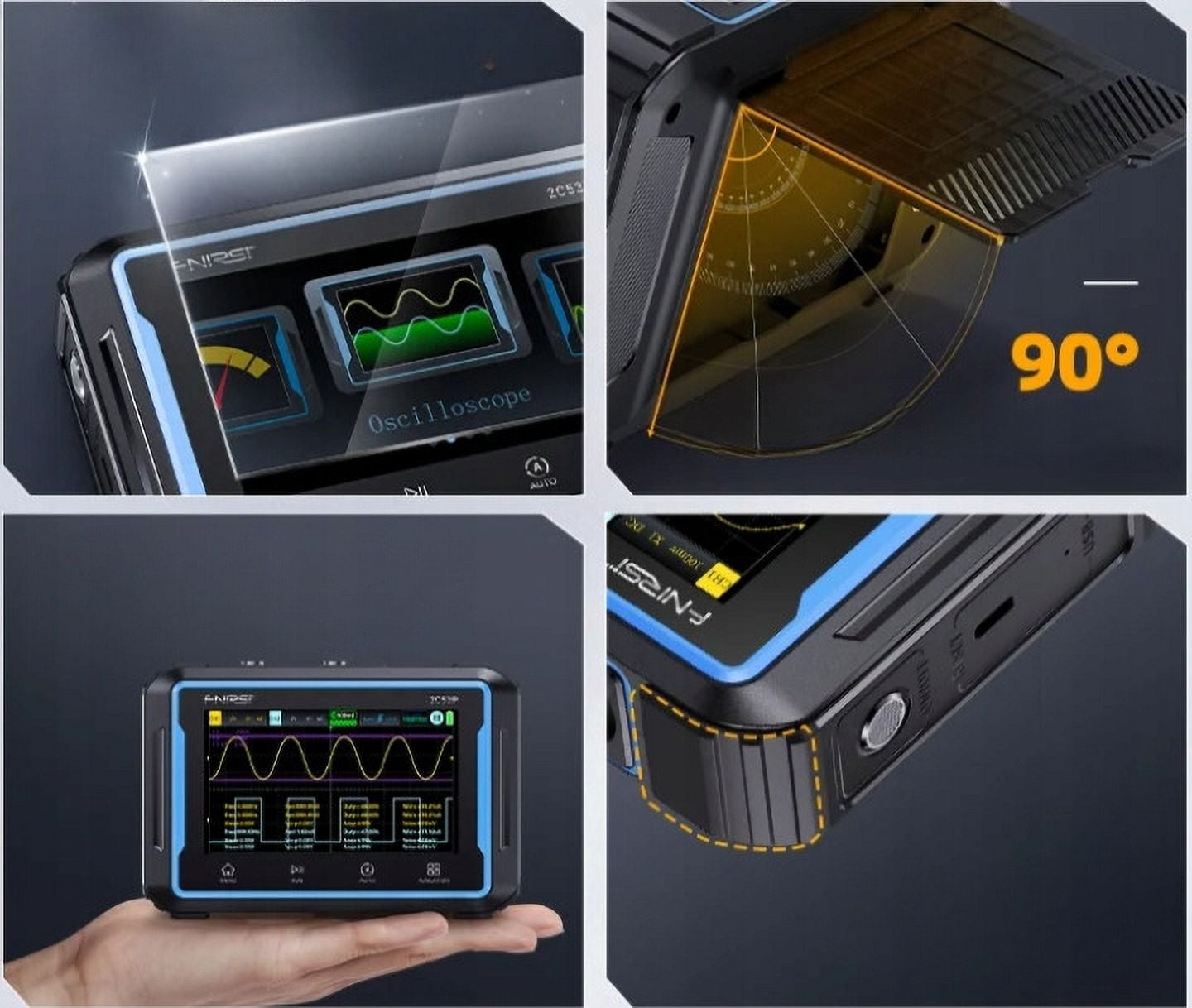

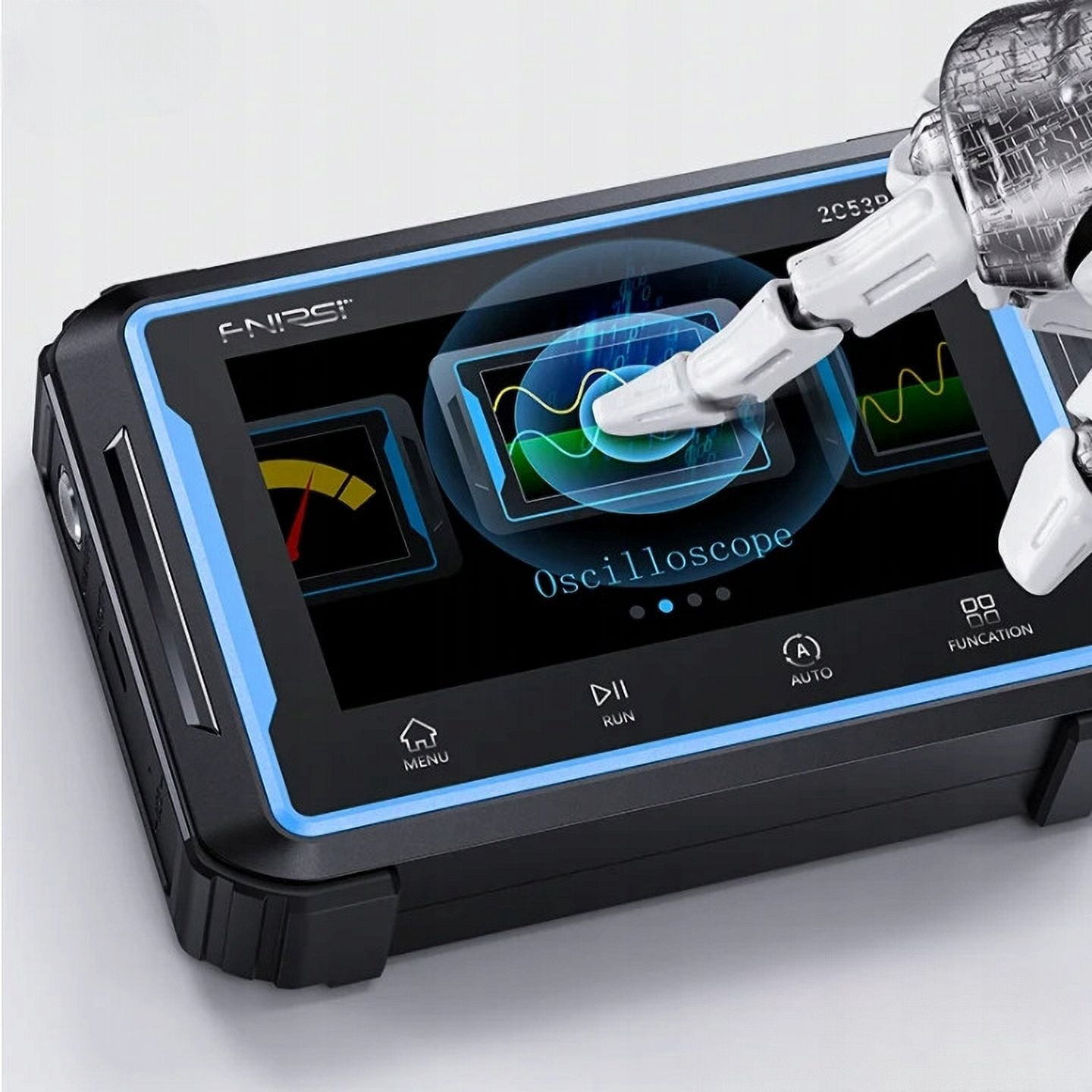

  ✅ The device is equipped with a 4.8-inch large IPS color touch screen with a resolution of 480 * 272 and a built-in 4000mAh lithium battery, providing users with efficient work and portability for better functionality.
  ✅ The device is ideal for those who like to use a convenient multi-functional device to measure and test electronic components.

• ➡ Product main features:
  1.3 in 1 device: combination of digital oscilloscope and electronic multimeter, DDS signal generator
  2. 4.3 inch IPS color display, resolution 480 * 272 - convenient to read measurement results
  3. Adjustable backlight brightness level
  4. 4000 mAh battery ensures long working time
  5. Rechargeable via USB-C interface
  6. Up to 5 measurement values ​​can be saved and the highest and lowest values ​​can be checked
  7. Equipped with intelligent double overload protection system
  8. Made of high-quality materials
  9. Anti-slip surface
  10. Widely used in electronic products

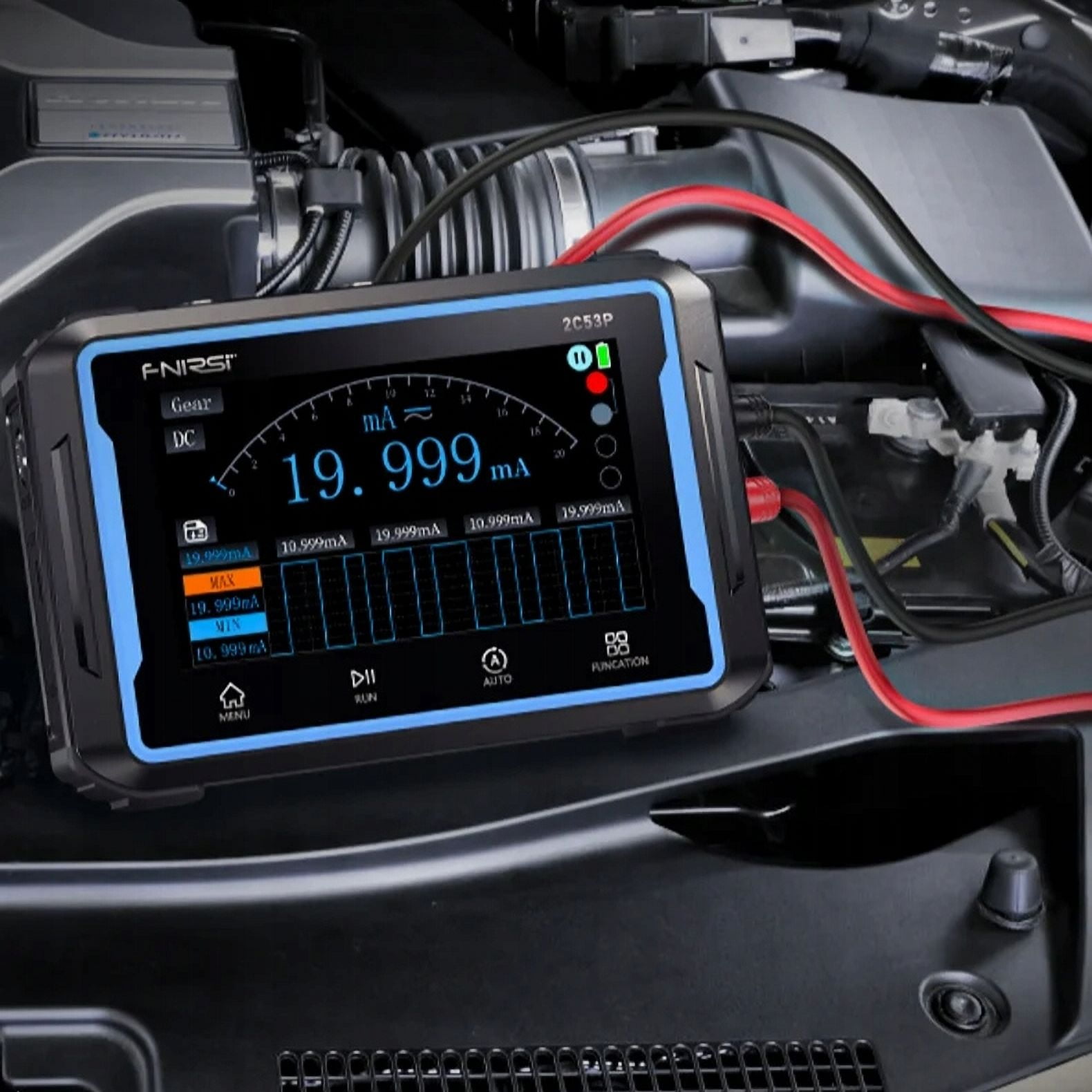

• ➡ Multiple measurement functions The Fnirsi 2C53P multimeter is equipped with many functions, which makes it an extremely useful device in diagnostic work.

  ➡ Fnirsi 2C53P Features: DC voltage measurement AC voltage measurement AC current measurement DC current measurement Resistance Capacitance Frequency Temperature measurement Diode test Communication test

• ➡ Specifications -
  Multimeter: DC voltage: 1.9999 V / 19.999 V / 199.99 V / 1000.0 V ± (0.5% +3)
  AC voltage: 1.9999 V / 19.999 V / 199.99 V / 750.0 V ± (1% +3)

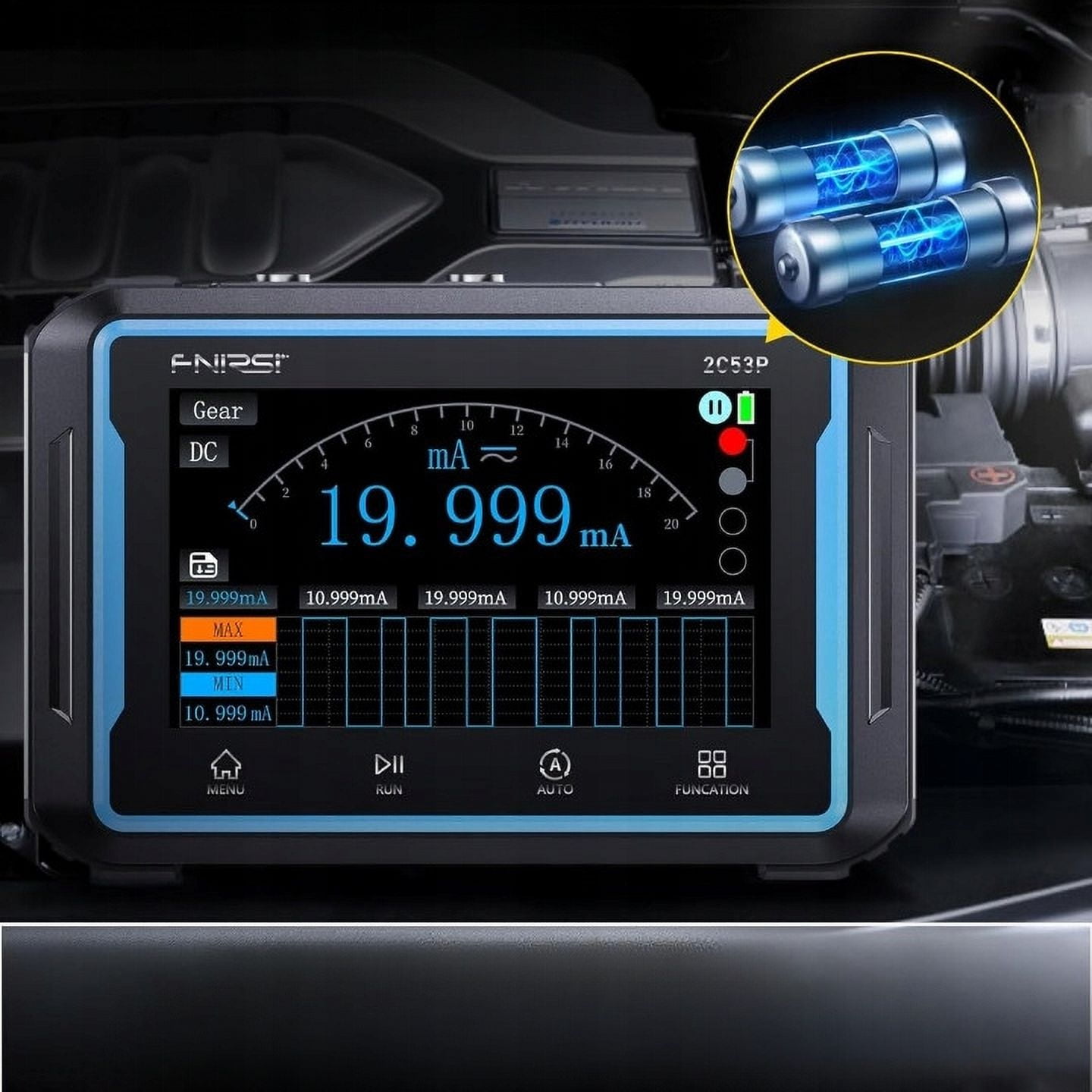

  DC current: 19.999 mA / 199.99 mA / 1.9999 A / 9.999 A ± (1.2% +3)
  AC current: 19.999 mA / 19.999 mA / 1.9999 A / 9.999 A ±(1.5%+3)
  Resistance: 19.999MΩ/1.9999MΩ/19.99KΩ/19.999KΩ±(1.5%+3), 1.9999KΩ/19.99Ω±(0.5%+3)
  Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF: ±(2.0%+5), 9.999mF/99.99mF: ±(5.0%+20)
  Temperature: -55 to 1300℃ (-67 to 2372℉, ±(2.5%+5)

  ➡ Technical Data -

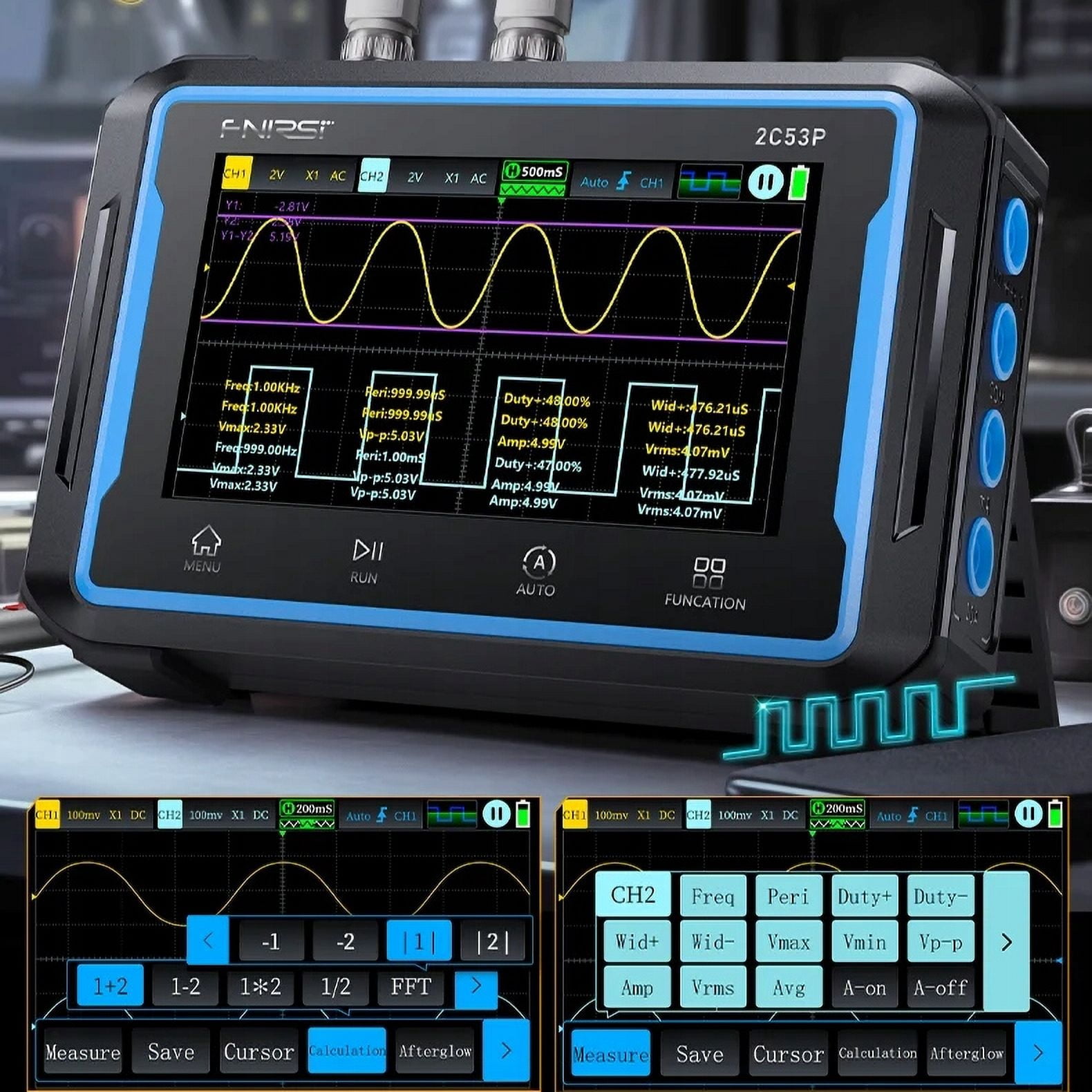

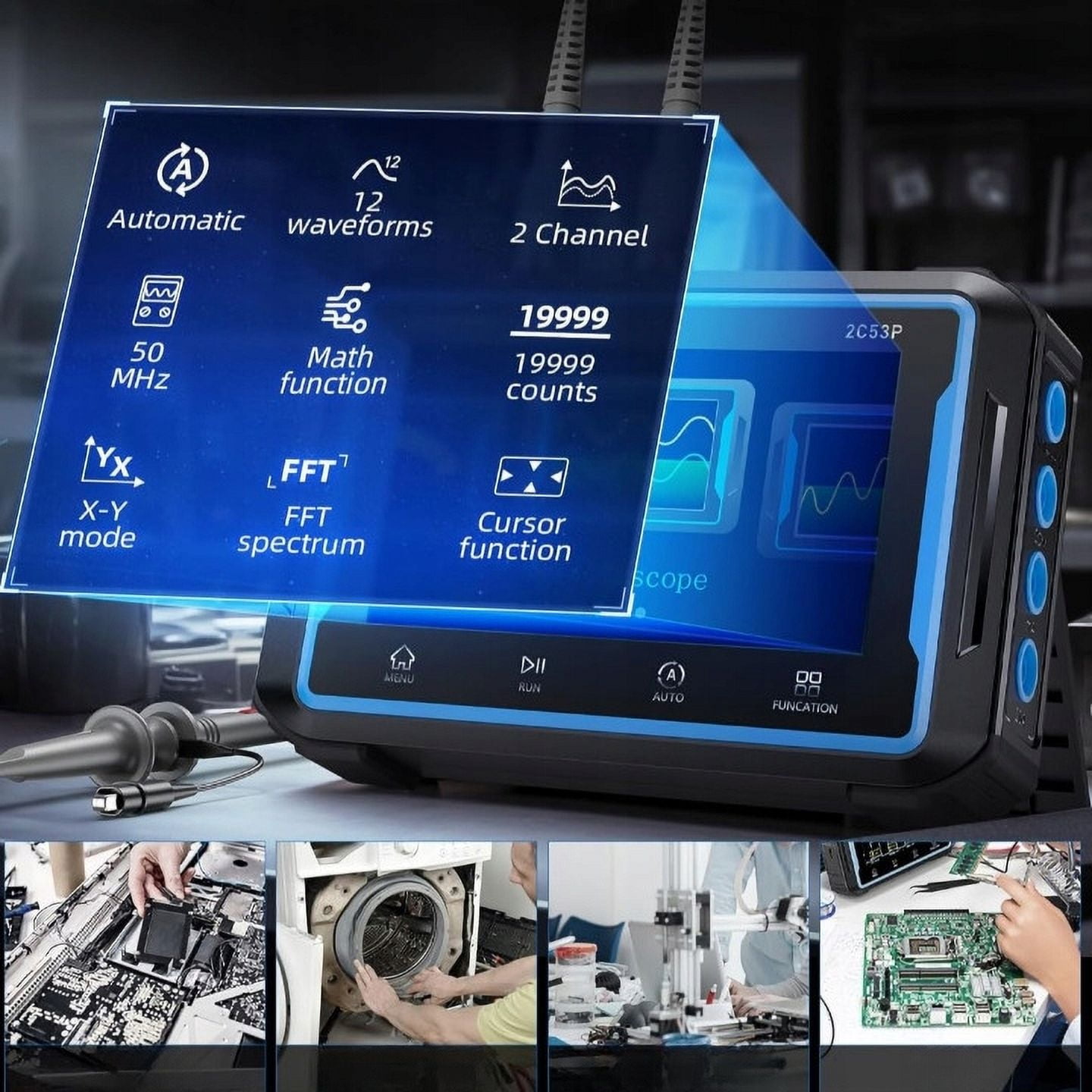

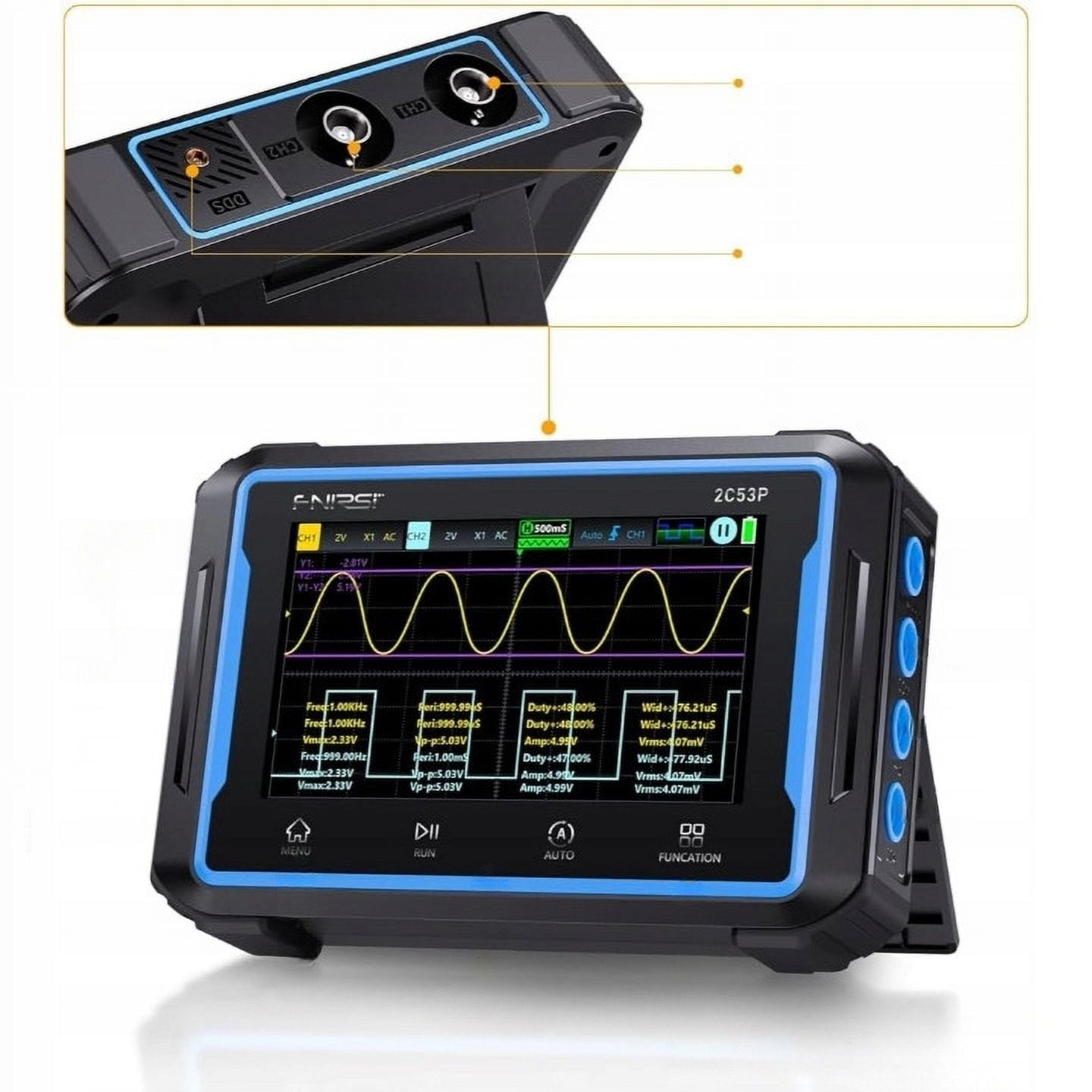

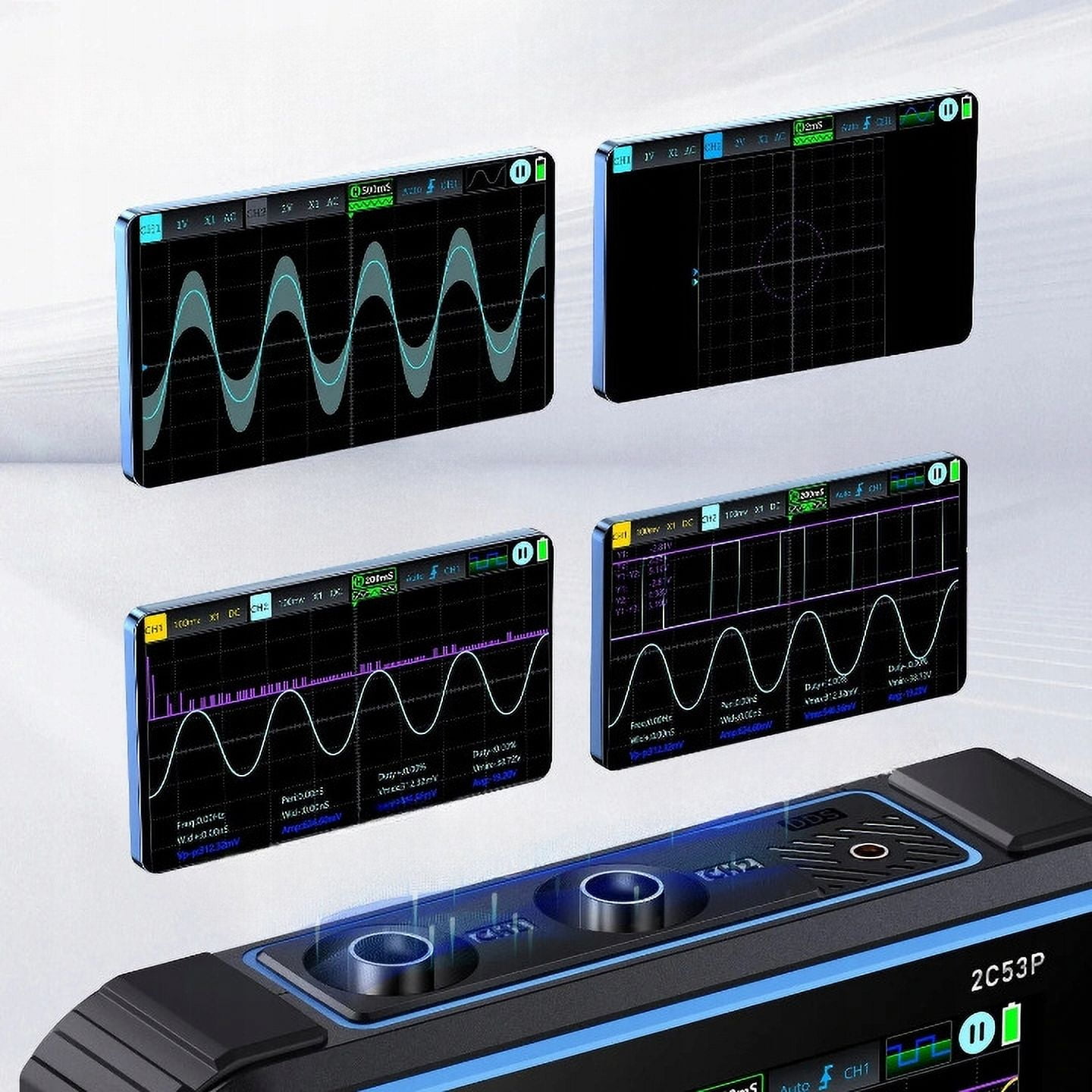

  Digital Oscilloscope: Number of Channels: 2
  Sampling Rate: 250MS/s
  Analog Bandwidth: 50MHz
  Output limit: 20MHz -
  Subwoofer measurement voltage: +/-400V
  Impedance: 1M Ω
  Trigger mode: Auto, Normal,
  Single vertical sensitivity: 10mV/Div-10V/Div
  Trigger mode: Rising edge, Falling edge

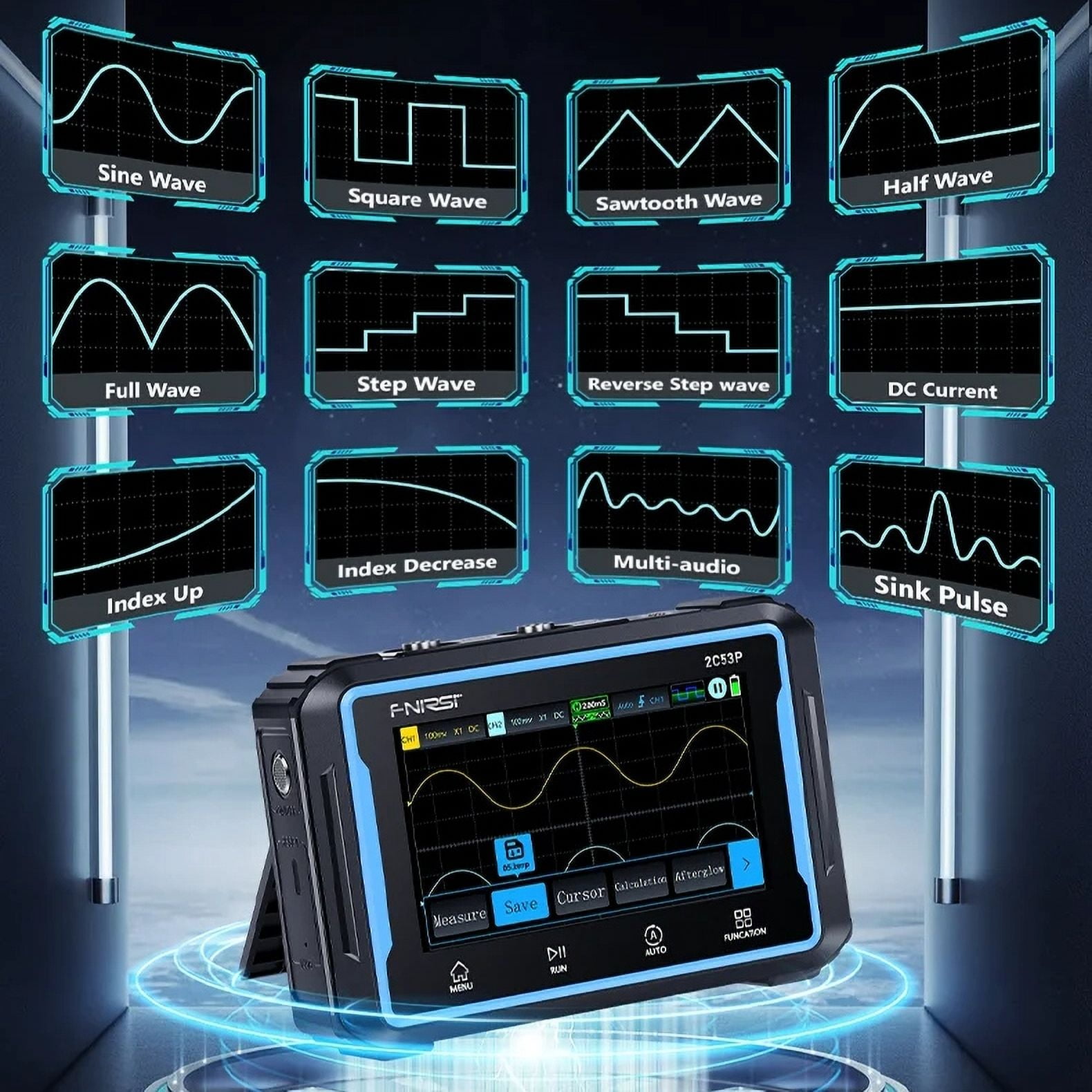

• ➡Specifications - Signal generator:
  Number of channels: 1
  Frequency: 0-10MHz (sine wave: 10MHz, others: 5MHz)
  Amplitude: 0.1V -3.0V
  Square wave period: 0-100%

  ➡General specifications:
  Brand: Fnirsi
  Model: 2C53P
  Display: 4.3-inch IPS color display
  Resolution: 480 * 272
  Maximum display value: 19999
  Battery capacity: 4000 mAh
  Charging: USB Type-C, 5V / 2A

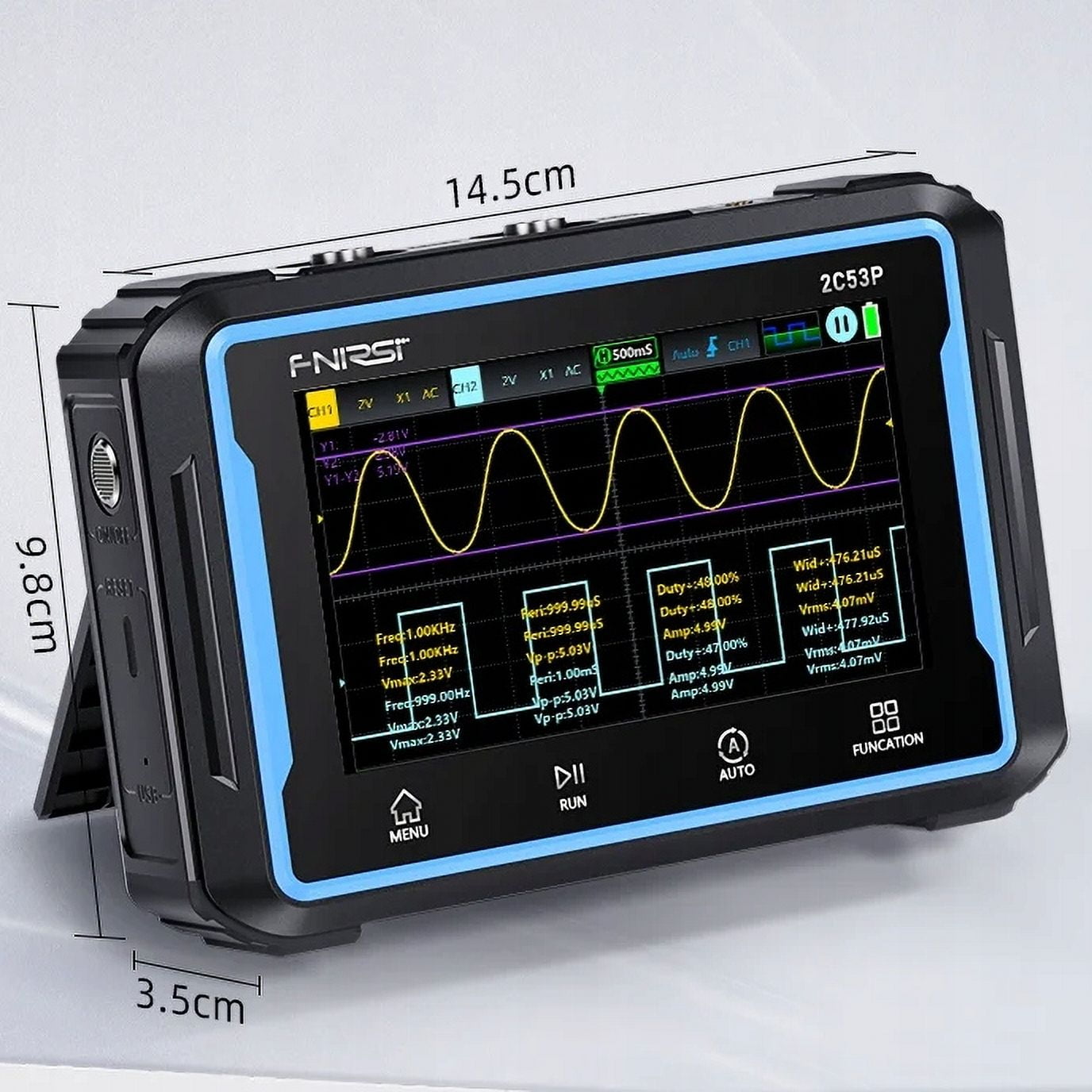

  Dimensions: 145 x 98 x 35 (mm)
  Weight: about 360g

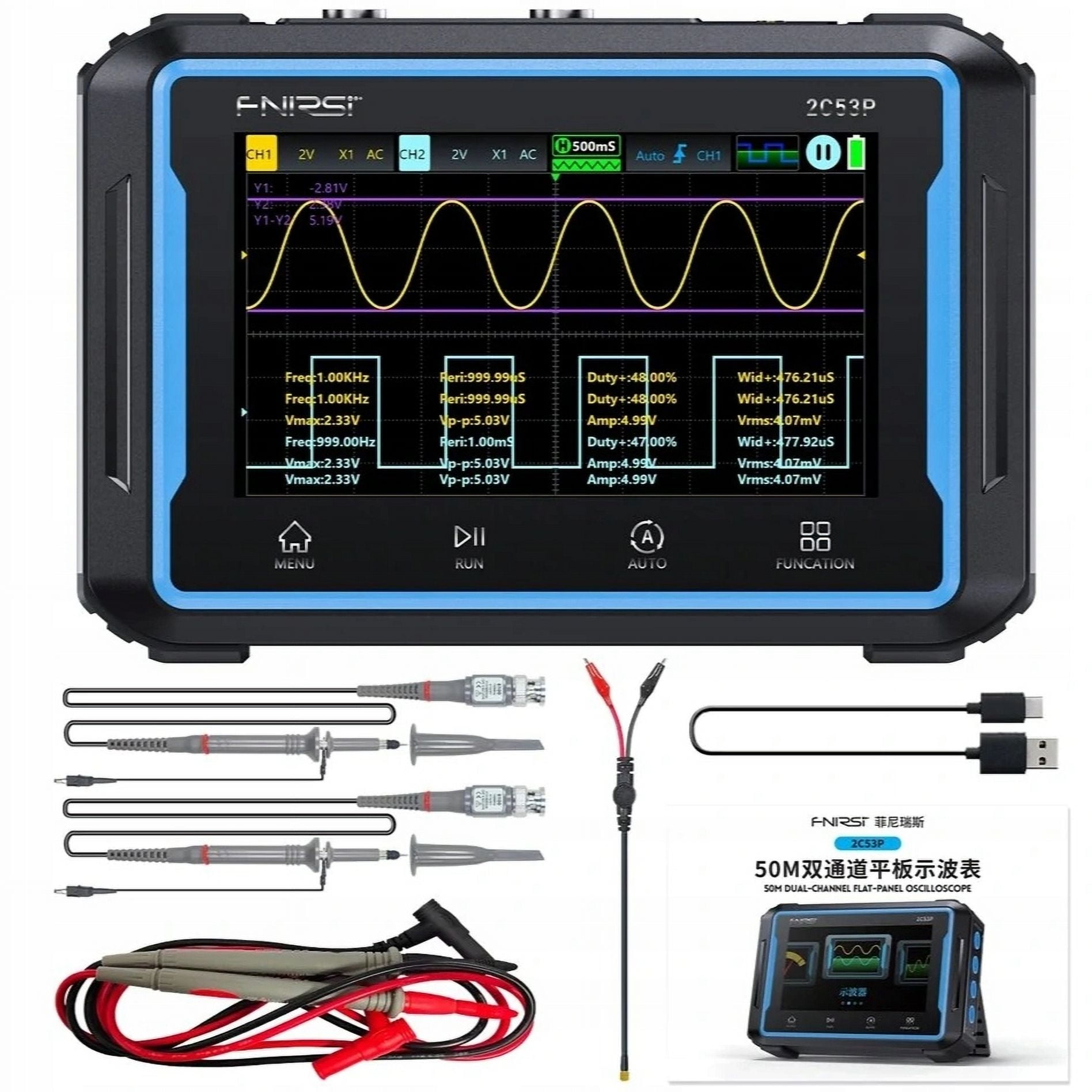

  ➡Kit Includes:
  1x FNIRSI 2C53P 3-in-1 Measurement Oscilloscope (Black and Blue)
  2x P6100 High Voltage Probe
  1x Alligator Clip Probe
  2x Measurement Leads
  1 USB-C Power Cable
  Info! Colors in photos may vary from actual colors due to differences in light type, intensity, angle, and display settings.
